PointMaster® Eagle

Dantel’s PointMaster® Eagle is the premier communications network management system. The Eagle provides concentration, management, and reporting of Network Element (NE) events as well as environmental alarm status for a variety of industries and applications. The Eagle is designed to improve Quality of Service (QoS) by intelligently collecting and reporting mission critical information for our partners in the Telecom, Utility, Cable, Industrial, Wireless and ISP industries of all sizes.

The PointMaster® Eagle detects events, then converts and reports this information in any one of several protocols and interfaces to any existing centralized Network Operation Center (NOC), or Dantel’s VisionMaster Micro-NOC (TM) Management System. The Eagle supports a Web Browser Interface for local and remote access to color-coded prioritized views of event status from any standard Web Browser. The Eagle operates in asynchronous (serial), dial-up and/or TCP/IP networks, positioning you to address your immediate and future network migration needs. The Eagle reports over individual ports and IP sessions or can report simultaneously to several host locations. The PointMaster® Eagle operates in a stand-alone application or as a point expander.

Select key features include TL1, DCP, DCPF, TABS, TBOS, DCM and SNMP, Multiple TL1/IP sessions, Multiple DCPF/IP sessions, Multiple SNMP/IP sessions, 64 to 256 scalable individually reversible alarm inputs, intrusion, fire, MUX, circuit switching and environmental discrete alarms, 4 to 32 scalable control outputs, and CLI and web browser interfaces.

Key Features
  • Five alarm/control configurations, 64/8, 128/4, 128/32, 192/16, 256/4
  • reversible alarm inputs
  • Alarm input rate filtering
  • Alarm input period filtering
  • Control output feedback reporting
  • 4-level alarm-triggered control output
  • NV/RAM memory module (optional)
  • Terminal Server
  • POST (Power-On Self Test)
  • FTP (File Transfer Protocol)
  • History log
  • CLI (Command Line Interface)
  • Browser-based user interface
  • 64-character definable description field
  • 15-character definable character prompt
  • System and provisioning password protection
  • Connectorized options

Alarm Types

  • Intrusion
  • Fire
  • MUX
  • Circuit switches
  • Environmental
System Specifications

Input Power

  • -18 VDC to -75 VDC
  • 160 mA at -48 VDC nominal


  • Length:5.125″
  • Width: 8″
  • Height: 4.5″
  • Weight: 3 lbs


  • 19″ 0r 23″ rack
  • IDF or MDF
  • Wall


  • Operating temperature range: 0C to +70C


  • 10/100 Base-T
  • Direct
  • Connectorized


  • NEBS Level 3 (NRTL)
  • CE Mark
  • UL/CSA
  • FCC

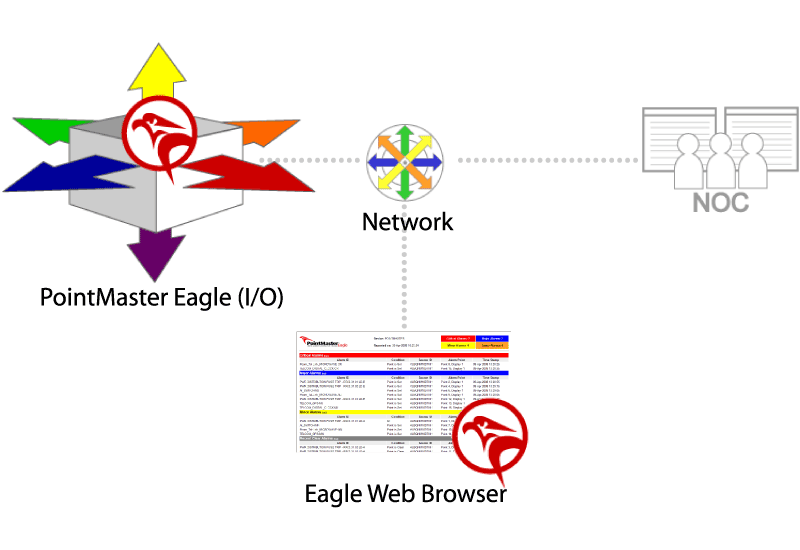

Stand Alone Application

PointMaster Eagle Stand Alone Application

PointMaster Eagle Stand Alone Application

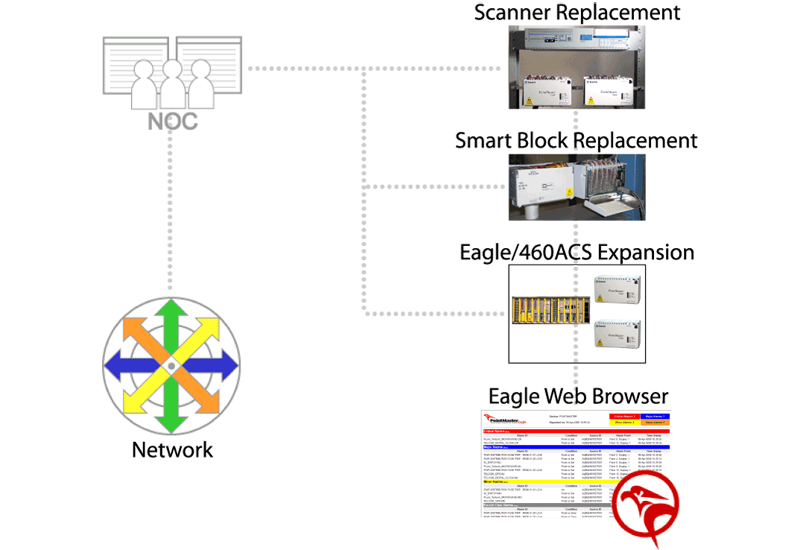

Replacement Application

PointMaster Eagle Replacement Application

PointMaster Eagle Replacement Application

Product Documentation
